Many people ask, can you solder galvanized steel without ruining its protective layer? The answer is yes. If you wonder, can you solder galvanized steel at home, you just need to follow the right steps. First, always clean the metal. Next, pick the correct flux and solder. Control the heat to avoid damaging the zinc coating. After you finish, care for the joint to keep it strong.
Can You Solder Galvanized Steel Without Damaging the Zinc Layer?
Why Protecting the Zinc Layer Matters
When you ask, can you solder galvanized steel without harming its surface, you need to think about the zinc coating. This layer acts as a shield. It protects the steel from rust and corrosion. If you damage the zinc, the steel underneath becomes exposed. Rust can form quickly, and the metal loses its strength.
If you overheat the metal during soldering, the zinc can turn into fumes. These fumes are toxic and can cause health problems like metal fume fever. Breathing in these fumes may also lead to long-term lung and nerve issues. The protective layer also breaks down, so the steel will not last as long.
You should always protect the zinc layer when soldering galvanized steel. This keeps your project safe and helps the metal last longer.
Quick Overview of the Safe Soldering Process
Can you solder galvanized steel safely? Yes, you can, if you follow the right steps. Here is a quick guide to soldering galvanized steel without damaging the protective layer:
- Clean the surface with muriatic acid for about one minute. This removes oxides and prepares the metal.
- Do not rinse off the acid. It acts as a flux and helps the solder stick.
- Place your patch or joint on the cleaned area.
- Use a solder made of 50% tin and 50% lead. Choose a large soldering iron or copper tool for even heating.
- Heat the area gently. Let the solder flow into the seam. Avoid moving the joint until it cools.
- After soldering, rinse off any leftover flux with water. Dry the area well.
- If you used a patch, wipe it with mineral spirits. Prime and paint the area to protect it.
Tip: Always work in a well-ventilated space. This reduces your risk from fumes and keeps you safe.
By following these steps, you can solder galvanized steel and keep the zinc layer intact. This process helps you avoid rust and keeps your work strong.
Preparation for Soldering Galvanized Steel
Cleaning Techniques for Galvanized Steel
You need to focus on cleanliness before you start soldering. Pre-cleaning the joint area helps you get rid of anything that might stop the solder from sticking. Start by checking the surface for bumps, drips, or rough spots. You can use a file or grinder to smooth out these areas. Make sure you do not damage the zinc coating while you work.
Next, you should remove any dirt, oil, or grease. Cleaning the material with a mild alkaline solution works well. Mix 10 parts water with 1 part alkaline cleaner. Use a brush or a low-pressure washer to apply it. If you see any stubborn spots, you can wipe them with a clean cloth and a solvent. Change the cloth often so you do not spread the dirt back onto the steel.
Tip: Always rinse the steel with fresh water after using any cleaner. This step keeps the surface free from leftover chemicals.
After you finish, dry the steel completely. Heated drying works best because it prevents new moisture from causing rust.
Removing Oxides and Contaminants
You must thoroughly clean the joint before you solder. Oxides and other contaminants can stop the solder from bonding well. Light grinding or wire brushing helps you remove these layers. According to industry standards, you should extend the cleaned area into the surrounding zinc coating. This gives you a better bond.
If you need to use an acid cleaner, mix 25 parts water with 1 part acid. Apply it for only 2-3 minutes. Rinse the area right away with water, and then rinse again to make sure no acid remains. Dry the steel as soon as possible.
Note: Preheating the steel to about 600°F and brushing it while hot can help remove stubborn oxides. Be careful not to overheat, or you might damage the zinc layer.
By following these steps, you prepare the steel for a strong, lasting solder joint.
Choosing the Right Materials for Soldering Galvanized Steel
Best Fluxes for Galvanized Steel (Zinc Chloride-Based Options)
When you start soldering galvanized steel, you need to pick the right flux. Zinc chloride-based fluxes work best for this job. These fluxes clean the surface and remove oxidation, which helps the solder stick to the metal. They break down the zinc oxide layer that forms on galvanized steel. This step is important because it lets the solder bond well and makes the joint strong.
Manufacturers recommend several fluxes for soldering galvanized steel. The table below shows some top choices:
| Flux Name | Typ | Temperature Range | Notes |
|---|---|---|---|
| Superior Flux No. 71 | Liquid | 200–800°F (95–425°C) | High-activity, RoHS compliant, PPE needed |
| Superior Flux No. 71-Paste | Paste | 200–800°F (95–425°C) | High-activity, RoHS compliant, PPE needed |
| Black Swan 95/5 Solder-N-Flux | Paste | Not specified | Contains zinc chloride, wash hands after use |
Note: Always wear gloves and eye protection when using any soldering flux. Wash your hands after handling these products.
Zinc chloride-based fluxes work better than rosin fluxes for soldering galvanized steel. They give you a stronger, more durable joint. You avoid weak bonds that can happen with other types of flux.
Selecting the Right Solder (Super Alloy 1 and Low-Temperature Alloys)
You also need to choose the right solder for your project. Super Alloy 1 is a popular choice for soldering galvanized steel. It melts at a low temperature of 350°F. This low heat helps you avoid damaging the zinc layer or warping the metal.
Here are some key features of Super Alloy 1 and other low-temperature solders:
- Super Alloy 1 gives you a strong bond, up to 20,000 psi.
- You can use it on galvanized steel and other metals like brass, copper, and stainless steel.
- The honey flux changes color when it reaches the right temperature, so you know when to apply the solder.
- You can use many heat sources, such as propane torches, soldering irons, or heat guns.
- The flux cleans up easily with warm water.
- After soldering, you can paint, polish, or plate the joint.
Super Alloy 1 is not the only option, but it stands out for its strength and ease of use. Always use a solder that melts at a low temperature to protect the zinc layer. This step helps you make a strong, lasting joint when soldering galvanized steel.
Soldering Tips for Galvanized Steel
Setting Up Your Workspace Safely
You need a safe and organized workspace before you start soldering galvanized steel. Choose a well-ventilated area to keep fumes away from your face. Open windows or use a fan to move air out of the room. Place a fire-resistant mat or metal tray under your work area. This step protects your table from heat and melted solder.
Keep your tools within easy reach. You should have your soldering iron, flux, solder, a damp sponge, and safety gear ready. Wear gloves and safety glasses to protect your hands and eyes. Keep a small bucket of water nearby in case you need to cool hot tools quickly.
Tip: Use insulating templates like foamboard to protect your work surface and prevent heat loss. This helps you keep the right temperature at the joint.
Remove any flammable materials from your workspace. Make sure you have good lighting so you can see the joint clearly. A clean and safe setup helps you focus on making strong, water tight seams.
Temperature Control to Protect the Zinc Layer
Controlling the temperature is one of the most important soldering tips for galvanized steel. If you use too much heat, you can damage the zinc layer. The zinc coating melts at 770°F (410°C). You should keep your soldering temperature below this point. Aim for a working temperature around 450°F (232°C). This range lets the solder melt without burning the zinc.
You can use a propane torch or an electric soldering iron to control the heat. Preheat your soldering iron for a few minutes before you start. This step ensures the tool reaches the right temperature. Keep the tip of the iron clean by wiping it on a damp sponge or steel wool. A clean tip transfers heat better and prevents oxidation.
Here is a quick guide to temperature control:
| Step | Action |
|---|---|
| Preheat iron | Wait a few minutes before use |
| Clean iron tip | Wipe on damp sponge or steel wool |
| Use correct tool | 40W iron with chisel bit for best results |
| Apply flux | Only to one joint at a time |
| Monitor temperature | Stay below 770°F (410°C) |
Note: Preheating the steel to about 600°F (315°C) can help prevent oxidation and improve solder adhesion. Always check the temperature to avoid overheating.
Step-by-Step Soldering Technique
Follow these steps to make a strong solder joint when soldering galvanized steel:
- Clean the metal surface and remove all dirt, oil, and oxides.
- Apply a thin layer of flux to the joint area. Only use enough for one joint at a time.
- Pre-tin the tip of your soldering iron by melting a small amount of solder on it. This step helps transfer heat evenly.
- Place the iron tip so it touches both pieces of metal near the joint. Hold it steady until the flux smokes and the solder melts quickly.
- Feed solder into the joint. Let it flow smoothly to fill the gap and create a strong bond.
- Remove the iron and let the joint cool without moving the parts.
- Wipe away any leftover flux with a damp cloth to prevent corrosion.
Callout: Regularly clean the iron tip during work to keep heat transfer effective. This step helps you avoid weak joints.
If you want to make water tight seams, use the pre-tinning joints method. Coat both surfaces with solder before joining them. This technique gives you a better seal and a stronger connection.
You can use these soldering tips to get the best results. Always control your heat, use the right amount of flux, and keep your tools clean. These steps help you protect the zinc layer and make your soldering galvanized steel projects last longer.
Common Mistakes When Soldering Galvanized Steel and How to Avoid Them
When you work with galvanized steel, you want strong, long-lasting joints. Many people make mistakes that weaken the bond or cause rust. You can avoid these problems by learning about the most common errors and how to fix them.
Overheating and Burning the Zinc Coating
If you use too much heat during soldering, you risk burning the zinc coating. The zinc layer protects the steel from rust. When you overheat the metal, the zinc can melt or even turn into dangerous fumes. This not only weakens the protection but also puts your health at risk.
To avoid this mistake:
- Use a temperature-controlled soldering iron or torch.
- Keep the heat below 770°F (410°C).
- Move the heat source away as soon as the solder flows.
Tip: Always watch for signs of burning, like white smoke or a dull, gray surface. Stop and let the metal cool if you see these signs.
Using Incompatible Flux or Solder
Choosing the wrong flux or solder can cause poor adherence of solder. If you use a flux that does not match galvanized steel, the solder may not stick well. This leads to weak joints that can break under stress. You need to use an acid-based flux, such as muriatic acid or ruby fluid, to clean the surface and help the solder bond.
If you skip this step or use the wrong materials, you may see cold joints or even corrosion later. Acid flux residues left on the joint can absorb moisture and keep corroding the metal. Always clean off any leftover flux after you finish.
Skipping Proper Surface Preparation
You must prepare the surface before you start. If you do not clean the steel, the solder cannot stick. Dirt, oil, and oxides block the bond. This leads to weak joints and makes the metal more likely to rust.
A table below shows why surface preparation matters:
| Problem from Poor Prep | Result on Joint |
|---|---|
| Debris or oil left on steel | Weak bond, joint fails |
| Oxides not removed | Solder does not stick |
| Residual flux not cleaned | Corrosion, pitting |
Industry standards, like ASTM A780-92, show that proper cleaning and the right materials give you strong, corrosion-resistant joints. If you skip these steps, your project may not last.
Post-Soldering Care for Galvanized Steel Joints
Cleaning Off Residual Flux to Prevent Corrosion

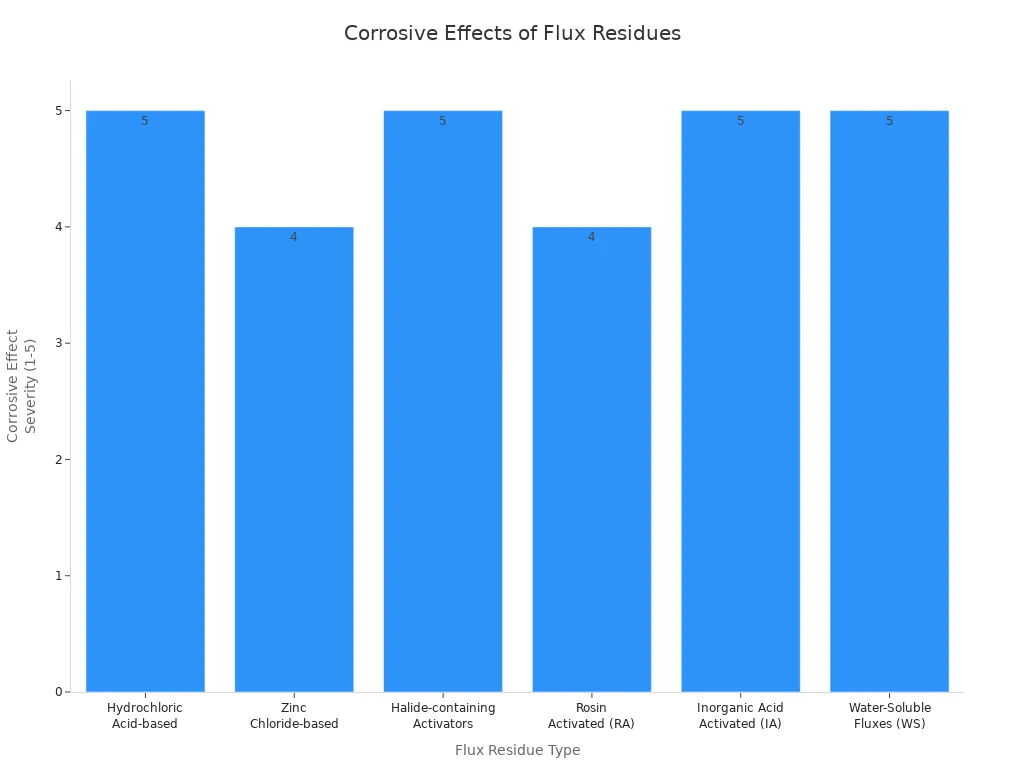

After you finish soldering, you must remove leftover flux to protect your galvanized steel joint. Flux residue can cause rust, leaks, and even pitting if you leave it on the metal. Some fluxes, like those with hydrochloric acid or halides, are very corrosive. These residues attract moisture and speed up corrosion. You can see the severity of different flux residues in the chart below:
To keep your joint strong and rust-free, follow these steps:
- Wipe away any leftover flux or solder drips while the joint is still warm. This prevents corrosion and stops green stains or leaks from forming.
- Use a damp cloth to remove extra flux before and after you connect the pieces.
- Apply flux with an acid brush, not your fingers. Wash your hands after handling flux.
- Pick the right flux type. Water-soluble flux washes away with water. Petrolatum-based flux needs a trisodium phosphate solution for cleaning, especially on galvanized iron.
- Clean and prepare all surfaces before soldering to remove dirt and oil.
You must clean all the flux residues to prevent rust and keep your joint safe for years.
Inspecting and Repairing the Zinc Layer if Damaged
After soldering, check the zinc coating around your joint. If you see bare spots or damage, you need to repair the zinc layer. This step keeps the steel protected from rust and makes your work last longer. You have several repair options:
| Repair Method | Description | Key Requirements |
|---|---|---|
| Zinc-Based Solders | Use zinc alloy in stick or powder form. Preheat the area to about 600°F (315°C). Apply solder to the damaged spot. | Coating thickness must meet ASTM A780 specs. Maximum thickness is 4 mils (100 µm). Thickness is measured without damaging the coating. This method matches the look of the original zinc. |
| Zinc-Rich Paint | Brush or spray onto clean, dry steel. Paint contains 65-69% or more than 92% metallic zinc by weight. | Coating thickness must be 50% greater than the surrounding area but not more than 4 mils (100 µm). Use a magnetic or electromagnetic gauge to check thickness. Inorganic binders work best for touch-ups. |
| Zinc Spray (Metallizing) | Melt zinc powder or wire and spray molten zinc onto the surface using a flame or electric arc. | Zinc purity must be at least 99.5%. Coating thickness must meet ASTM A123/A123M standards. Measure thickness with a magnetic or electromagnetic gauge. |
Check your repair to make sure the coating is even and thick enough. This protects the steel from rust and keeps your project looking good.
You can solder galvanized steel safely when you follow the right steps. Always clean the metal, use the correct flux and solder, and control your heat. After soldering, care for the joint to keep it strong. For best results, remember these safe practices:
- Wear gloves, eye protection, and flame-resistant clothing.
- Work in a well-ventilated area or use fume extraction.
- Wash your hands and clean your workspace after finishing.
These habits help you protect the zinc layer and create a strong, rust-resistant bond.
FAQ
Can you solder galvanized steel with a regular soldering iron?
Yes, you can use a regular soldering iron if it has enough power. Choose an iron with at least 40 watts. Make sure the tip stays clean and hot. This helps the solder flow and stick to the metal.
What type of flux should you use for galvanized steel?
Pick a zinc chloride-based flux. This type cleans the metal and helps the solder bond. Avoid rosin flux because it does not work well on galvanized steel. Always wear gloves and wash your hands after using flux.
How do you know if you overheated the zinc layer?
Watch for white smoke or a dull, gray surface. These signs mean you used too much heat. If you see them, stop and let the metal cool. Overheating can damage the zinc and release harmful fumes.
Is it safe to solder galvanized steel indoors?
You should only solder galvanized steel indoors if you have good ventilation. Open windows or use a fan to move fumes outside. Zinc fumes can make you sick. Always wear a mask and work in a safe area.
Can you paint over a soldered joint on galvanized steel?
Yes, you can paint over the joint after soldering. First, clean off all flux residue. Let the joint dry. Use a primer made for metal, then apply paint. This protects the steel and keeps it from rusting.
